Basic conditions:

1.Material: Hot Rolled Coils
2.Strip Width: 300-650mm
3.Pipe Thickness: 0.8-3.2mm
4.Accumulation Length: 250m
5.Speed: 60m/min
6.Power: 380V, 50HZ

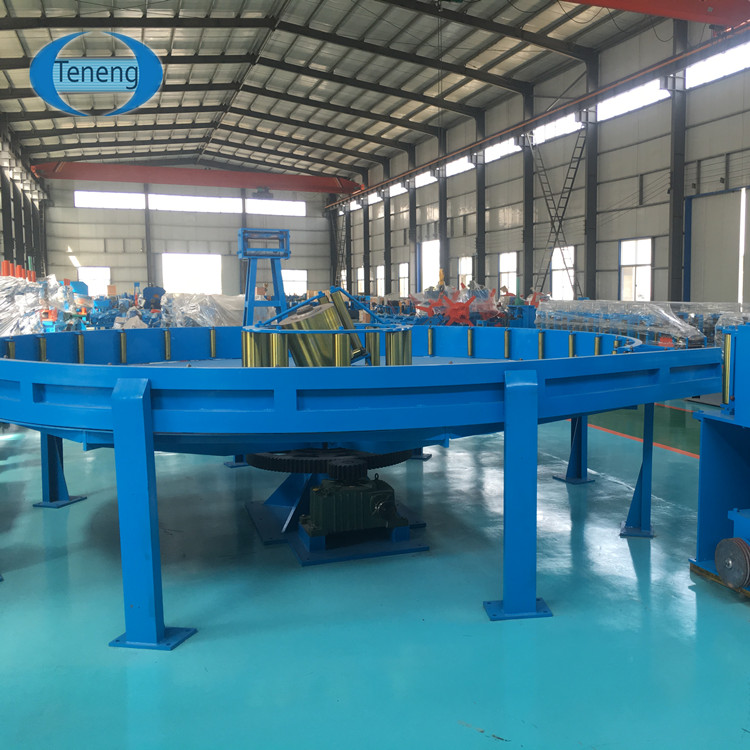

Main Parameters & Spiral Accumulator

Accumulator diameter: 5m;
Style: Floor style
Storage way: Outside in and inside out;
Storage capacity: 250m
Feeding speed: ≤150m/min
Discharging speed: Same with the main machine≤90m/min;
Accumulator motor: YVP2.2KW/4, 9 pcs; Reducer 9pcs;
Outer ring active horizontal roll: Φ120mm*700mm*10pcs, 45# steel, Conditioning quenching,HRC42-48;
Inner ring passive horizontal roll: Φ120mm*500mm*10pcs, 45# steel, Conditioning quenching,HRC42-48;
Inner ring vertical roll: Φ100mm*450mm*12pcs, 45# steel, Conditioning quenching,HRC42-48;
Discharge roll: Φ100mm*400mm*10pcs, 45# steel, Conditioning quenching,HRC42-48;
Outer ring keep-off roll: Φ80mm*300mm*28pcs, 45# steel, Conditioning quenching,HRC42-48;
Accumulator convertor: 22KW Vector type;
Flip bracket: 2 set (before and after the accumulator)
Feeding center height: 600mm;

Feeding Device Parameter:

Style: steel structure, two-roll pinch
Feeding motor: YVP15KW-4, AC frequency conversion motor, frequency converter speed regulation;
Feeding cylinder: φ125mm*50mm*2pcs;
Break cylinder: φ125mm*50mm*1pcs;
Feeding roll: φ180 *400mm*2, 45# steel, Conditioning quenching,HRC42-48;
Feeding speed: ≤150m/min
