The mill is intended for manufacturing round pipe of Φ50mm-Φ114mm with thickness of 1.5mm–5.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Finished product will be of round, square or rectangular pipe.
The manufacturing process provides for the uses of coiled strip precut in required width sizes in slitting machine.

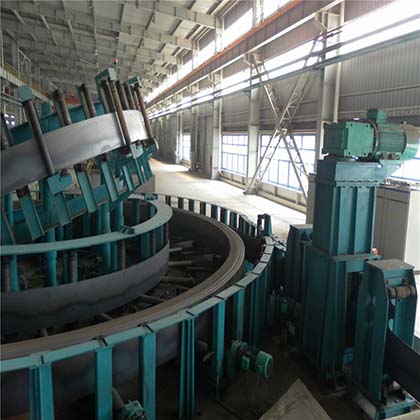

{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Cold saw under computer-control →→ Run-out table→→ Semi-auto Packing machine
| Steel Pipe Specification | |
| Round Pipe diameter | Φ50 –Φ114mm |
| Pipe Thickness | 1.5 – 5.0mm |
| Square and rectangle pipe | 40X40mm –90X90mm |
| Pipe Thickness | 1.5 – 4.0mm |
| Pipe Length | 6-12m |
| Length Tolerance | 0-6mm |
| Steel Tape Specification | |
| Material | Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Inner diameter | Φ470-Φ510mm |
| Outer diameter | Φmax=1800mm |
| Strip steel width | 140mm-4000mm |
| Strip steel thickness | 1.5mm-5.0mm |
| The maximum weight | 4.0 tons |
| Electric installed capacity | appro.500KW |
| Line Speed | 20-70m/min |
