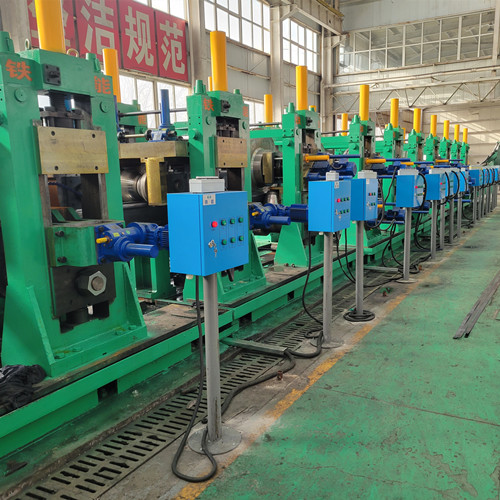

ERW610 high-frequency welded pipe production line is the special equipment providing longitudinally welded pipe and cold formed steel for industries such as metallurgy, construction, transportation, machinery, vehicles and so on. Taking cold or hot-rolled steel as raw materials, through cold-formed and high-frequency welding method produce the suitable round tube.
Material of the coil: Hot rolled coil with natural edges or slit coil
Strip Steel: Max.X60
(I) Steel Pipe Specification
1.1 Strip steel coil
| Type of coil | : Hot rolled coil with natural edges or slit coil |
| Coil O.D. / I.D | : Ø1500~2300mm / Ø760mm (-70/+20mm) |
| Weight of coil | : Max.35Tons |
| Strip width | : 1020~1915mm
(will be cut to proper width on slitting line) |
| Tolerance of width | : Coil with natural edges: 0~+20mm
(Edge miller could be used for all strip thickness range) |
| Strip thickness | : 7.0mm ~ 17.0mm |
| Tolerance of thickness | : According to the above standards |
| Strip camber | : 30.0mm in any 10.0m length |
| Coil telescope | : Mill Edge max.60mm; Slit max.30mm |
| Length of coil fish tail | : <1.0m |
1.2 Steel Pipe Specification
| No. | Product variety | Outer diameter (mm) | Thickness (mm) | Grade/ Yield strength | Standard |
| 1 | Line pipes | Ø325 ~610 | 7.0 ~17.0 | Up to X60 | API 5L |
